Thrust Ball Bearing

• Products Introduction

Thrust ball bearings are designed to withstand thrust loads at high speeds, and consist of a washer-shaped collar with ball-rolling raceway grooves. Since the rings are cushion-shaped, thrust ball bearings are divided into two types: flat-bottomed cushion type and spherical cushion type. In addition, these bearings can withstand axial loads but not radial loads.

  Axial load capacity

•  Custom Detail

1.Custom Approach: OEM/ODM(non-standard)

2.MOQ: Simple Custom-500 pieces

              Non-standard Custom: Small Size-5000 pieces

                                             Medium Size-5000 pieces

                                             Big Size-5000 pieces

Please send us an email for specific customisation needs, we will answer your questions about the customisation process in detail

• Product Details

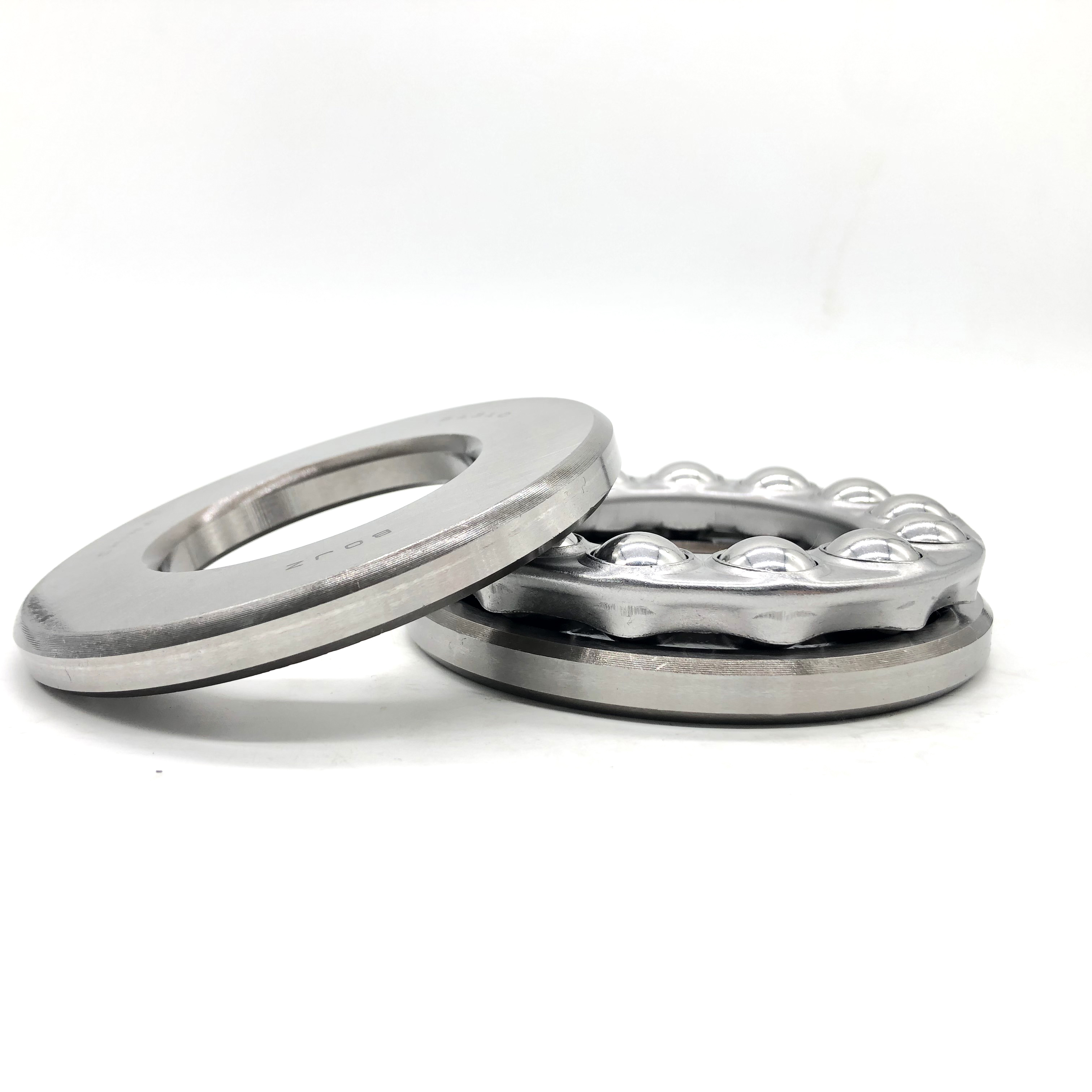

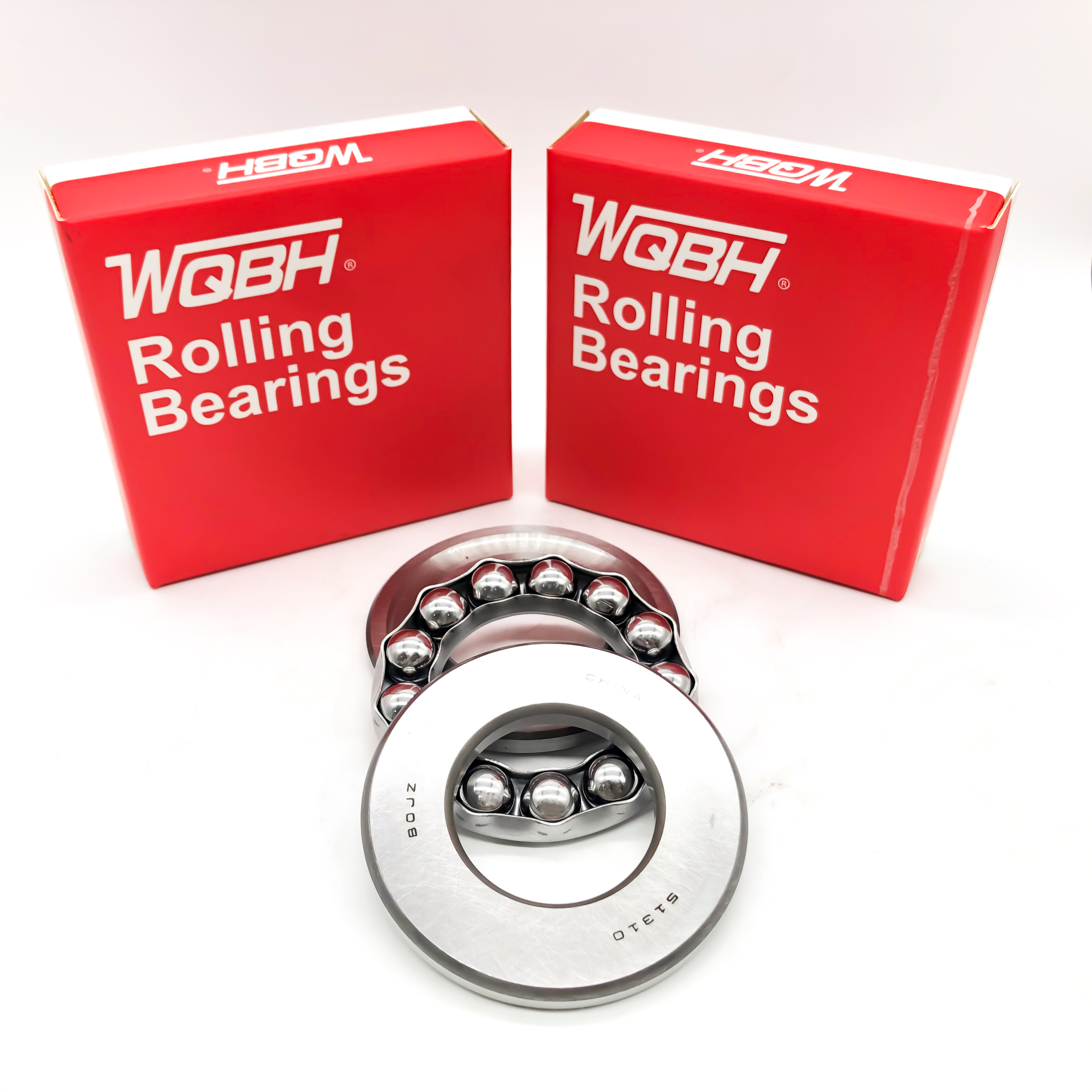

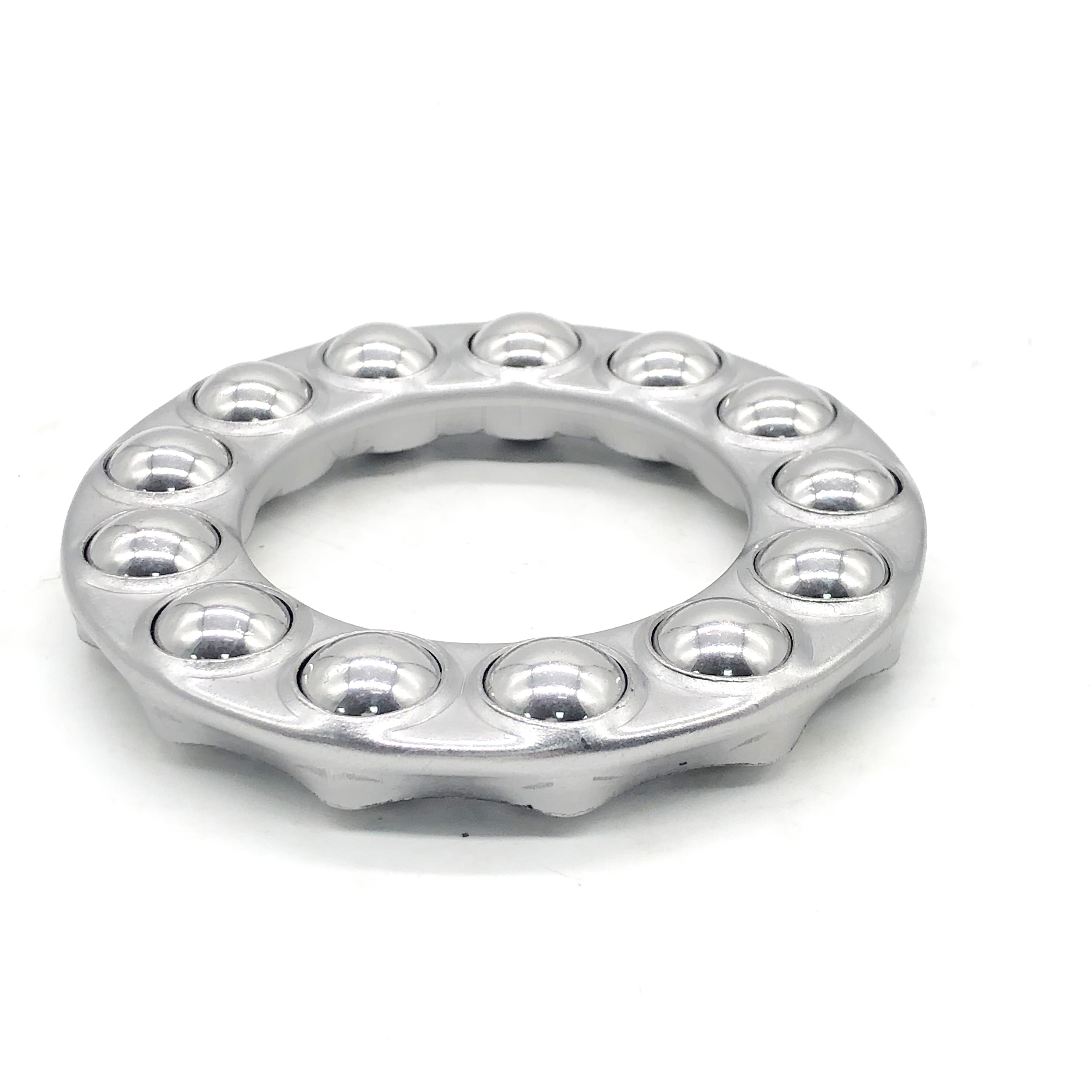

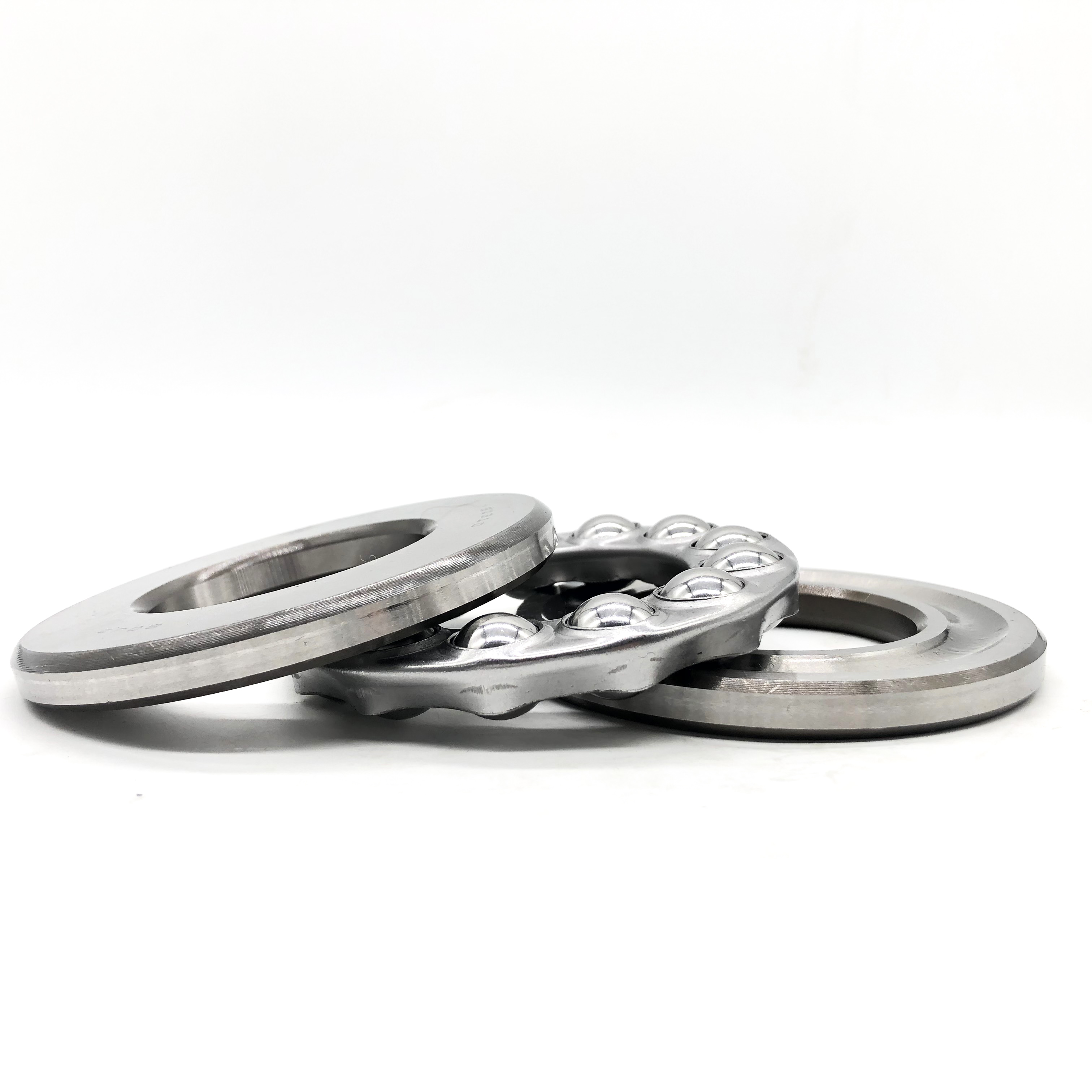

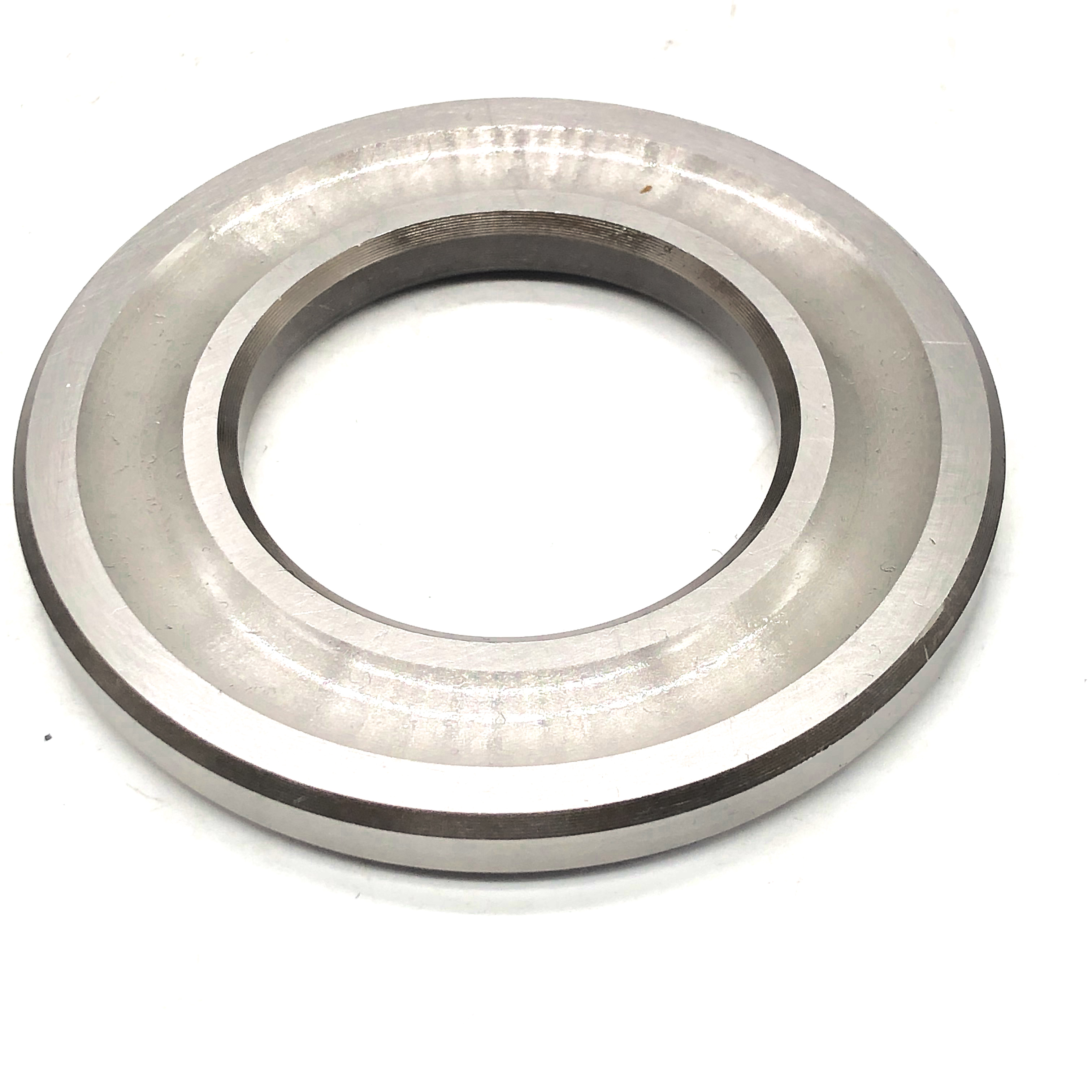

1.Detail Picture

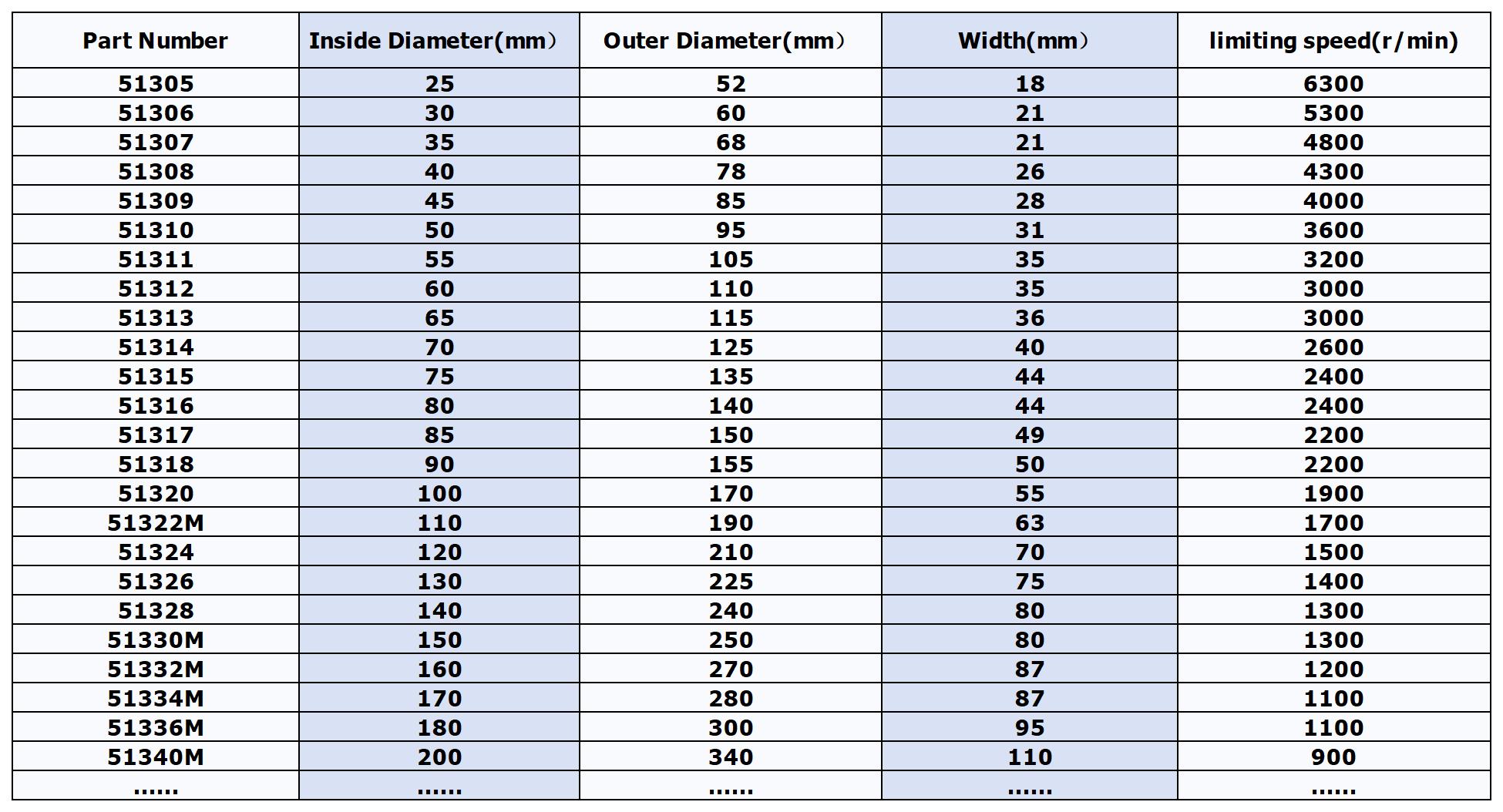

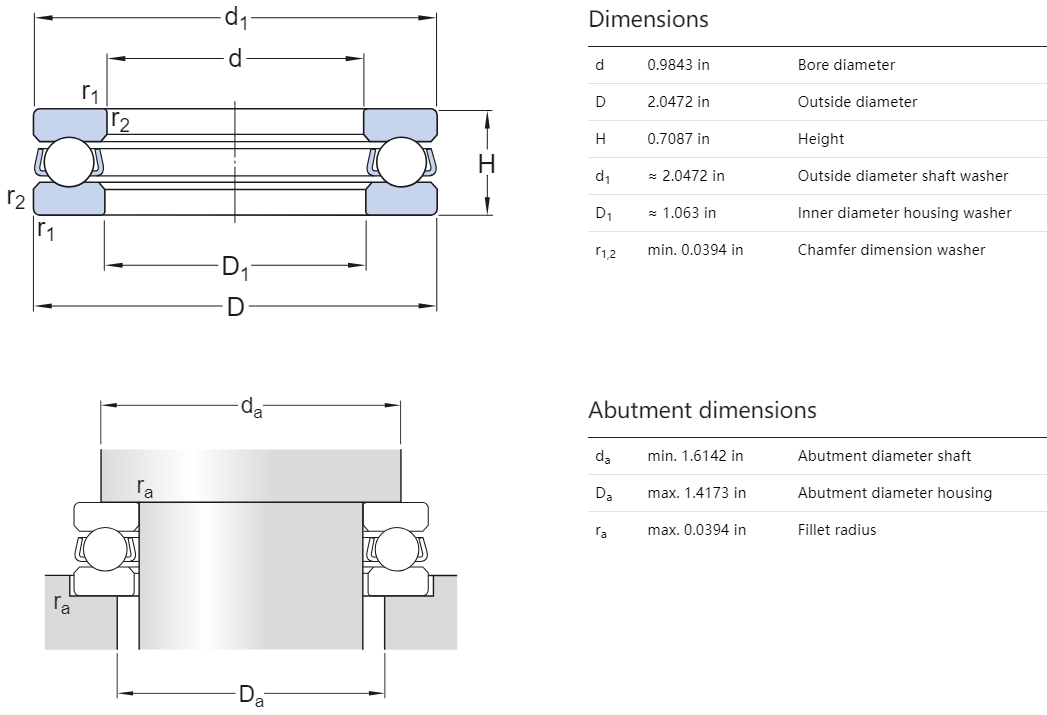

2.Technical parameters

3.Product Characteristics

·Separable design facilitates mounting and dismounting as well as maintenance inspections;

·replaceable parts;

·bore of the collar is ground to provide an interference fit with the shaft
