Pillow Block Bearing

• Products Introduction

Housed external spherical bearings are a type of bearing unit that combines a rolling bearing with a housing. Most of the external spherical bearings are made spherical in outer diameter and mounted together with housings with spherical bores, which have a variety of structural forms, good versatility and interchangeability.

Vertical (shaft table type) ball bearing units consist of an embedded bearing mounted in a cast iron bearing housing that can be bolted to a support surface. These units are strong and rigid and are suitable for applications where the direction of rotation is fixed or alternating. The inner ring is elongated on both sides and is locked to the shaft by tightening the set screws on the inner ring for easy mounting.

•  Custom Detail

1.Custom Approach: OEM/ODM(non-standard)

2.MOQ: Simple Custom-500 pieces

              Non-standard Custom: Small Size-5000 pieces

                                             Medium Size-5000 pieces

                                             Big Size-5000 pieces

Please send us an email for specific customisation needs, we will answer your questions about the customisation process in detail

• Product Details

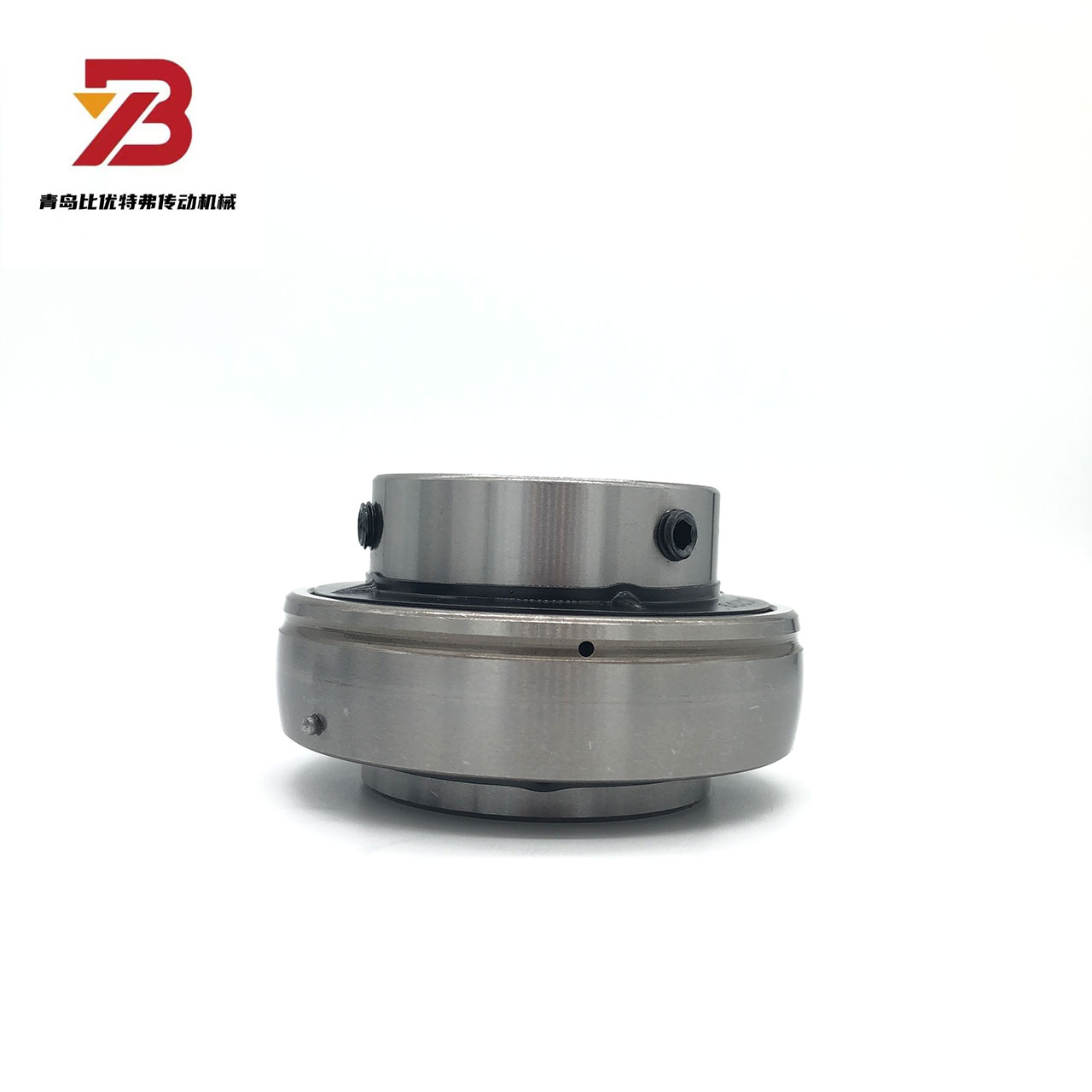

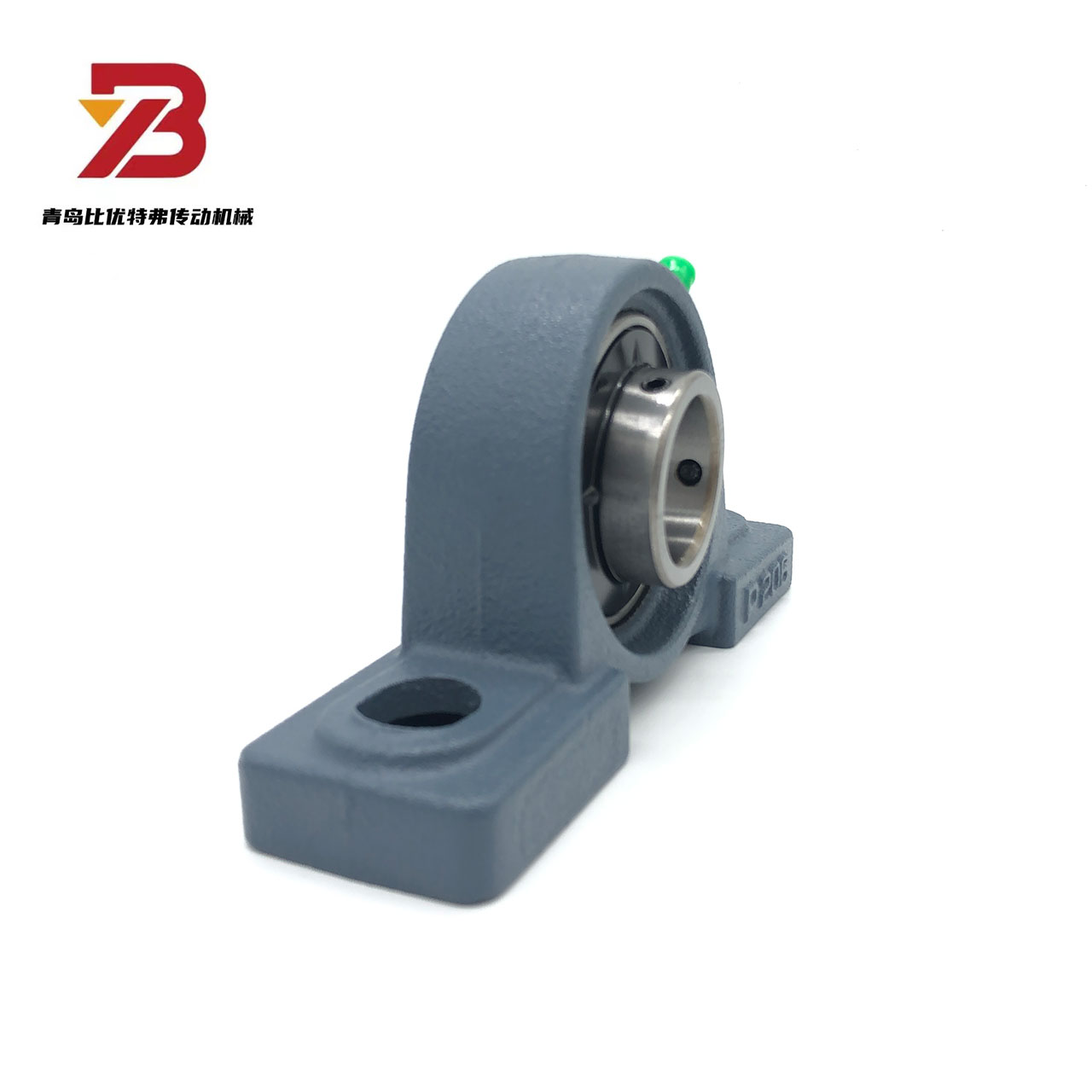

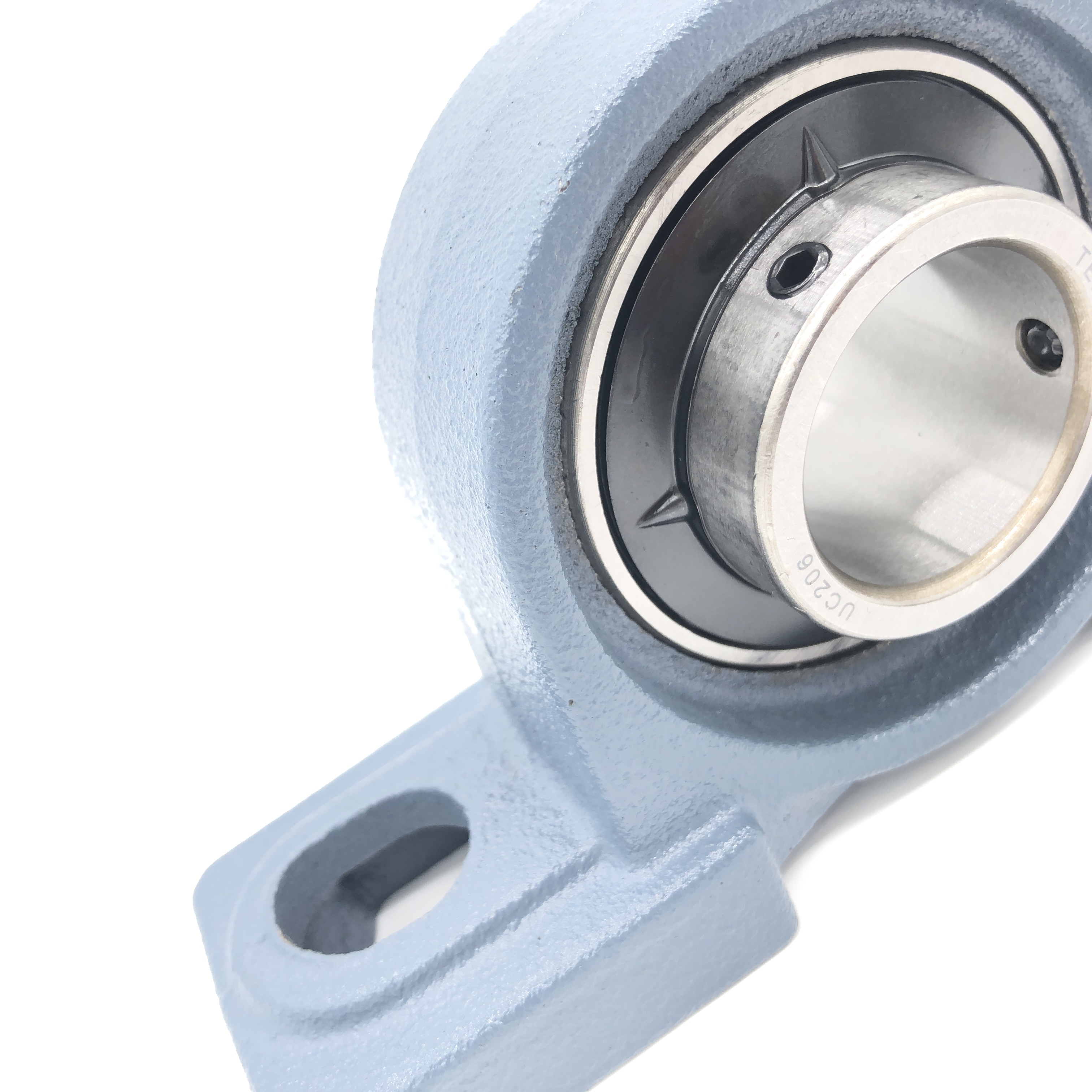

1.Detail Picture

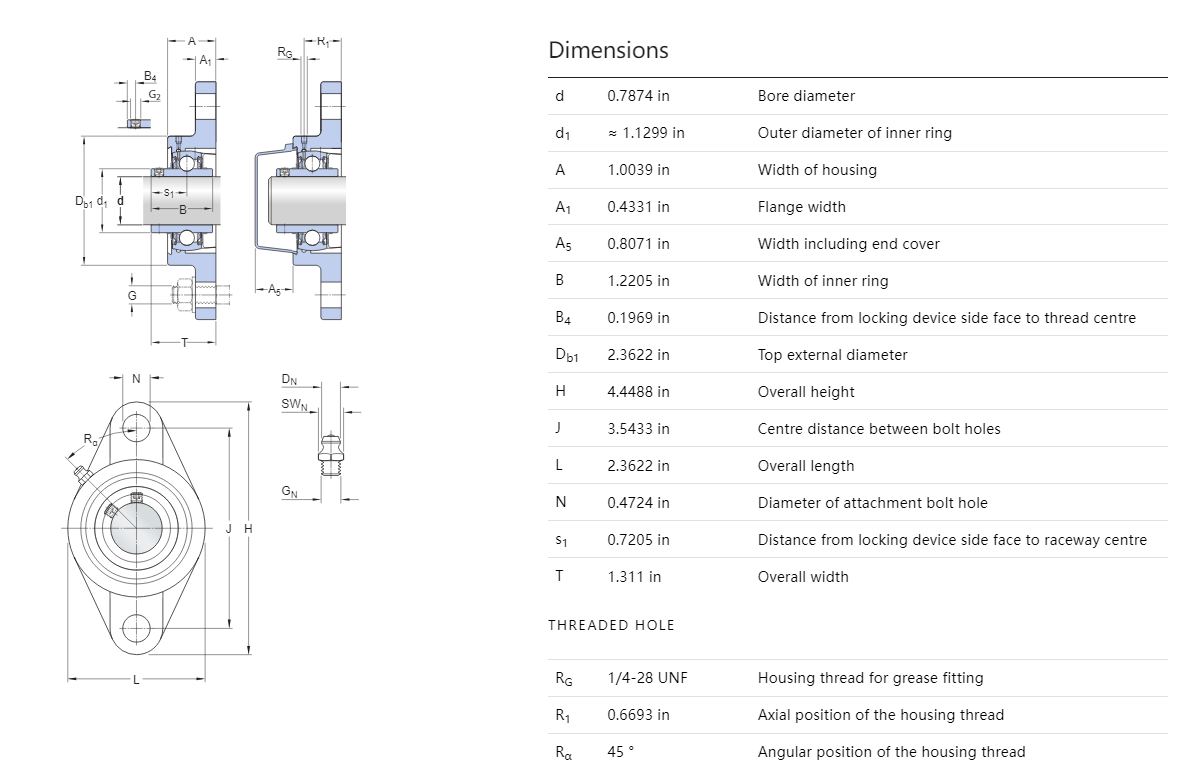

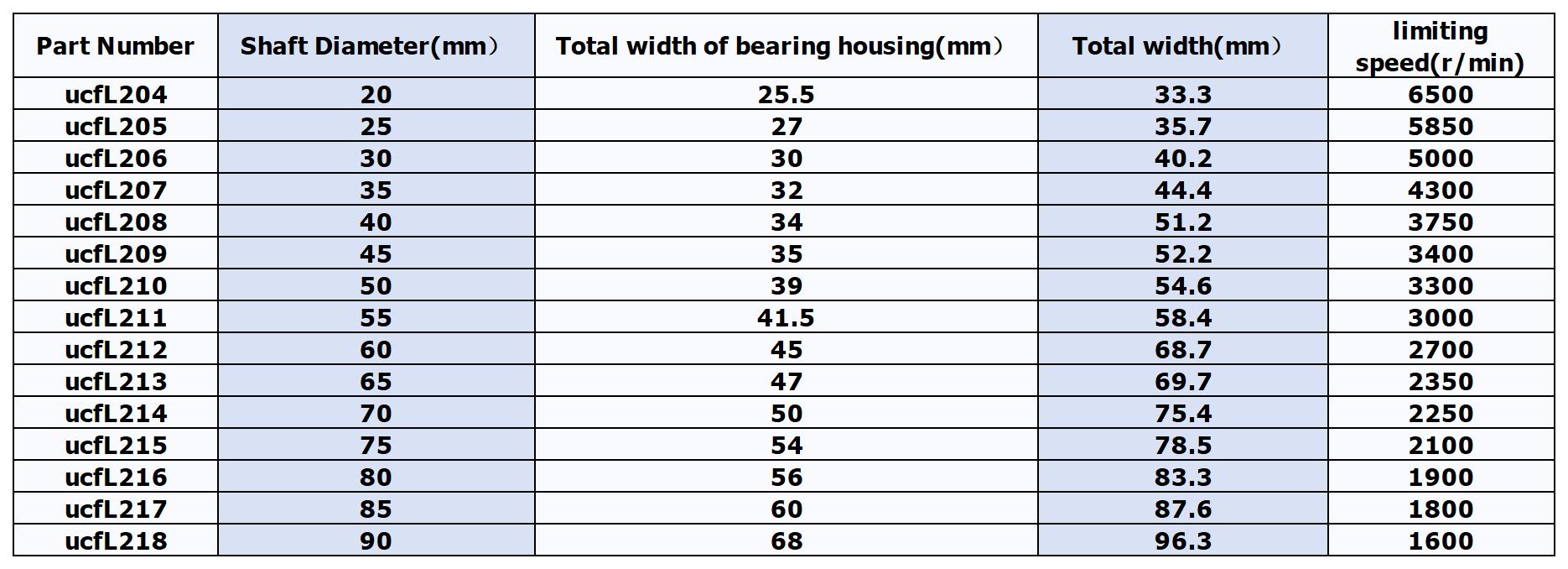

2.Technical parameters

3.Product Characteristics

·Can withstand high levels of contamination;

·designed for high temperature, high speed equipment applications;

·can withstand heavy loads;

·cost effective
