Angular Contact Ball Bearing

• Products Introduction

Angular Contact Ball Bearings can withstand both radial and axial loads. They can work at higher speeds. The larger the contact angle, the higher the axial load carrying capacity. Contact angle for radial plane ball and raceway contact point line and bearing axis of the vertical line between the angle. High precision and high speed bearings usually take 15 degrees contact angle. Under the action of axial force, the contact angle will increase.

•  Custom Detail

1.Custom Approach: OEM/ODM(non-standard)

2.MOQ: Simple Custom-500 pieces

              Non-standard Custom: Small Size-5000 pieces

                                             Medium Size-5000 pieces

                                             Big Size-5000 pieces

Please send us an email for specific customisation needs, we will answer your questions about the customisation process in detail

• Product Details

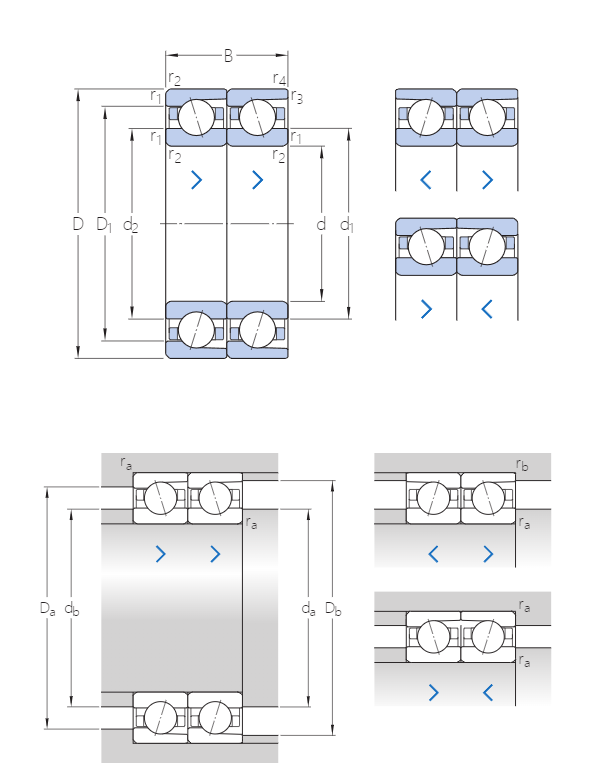

1.Detail Picture

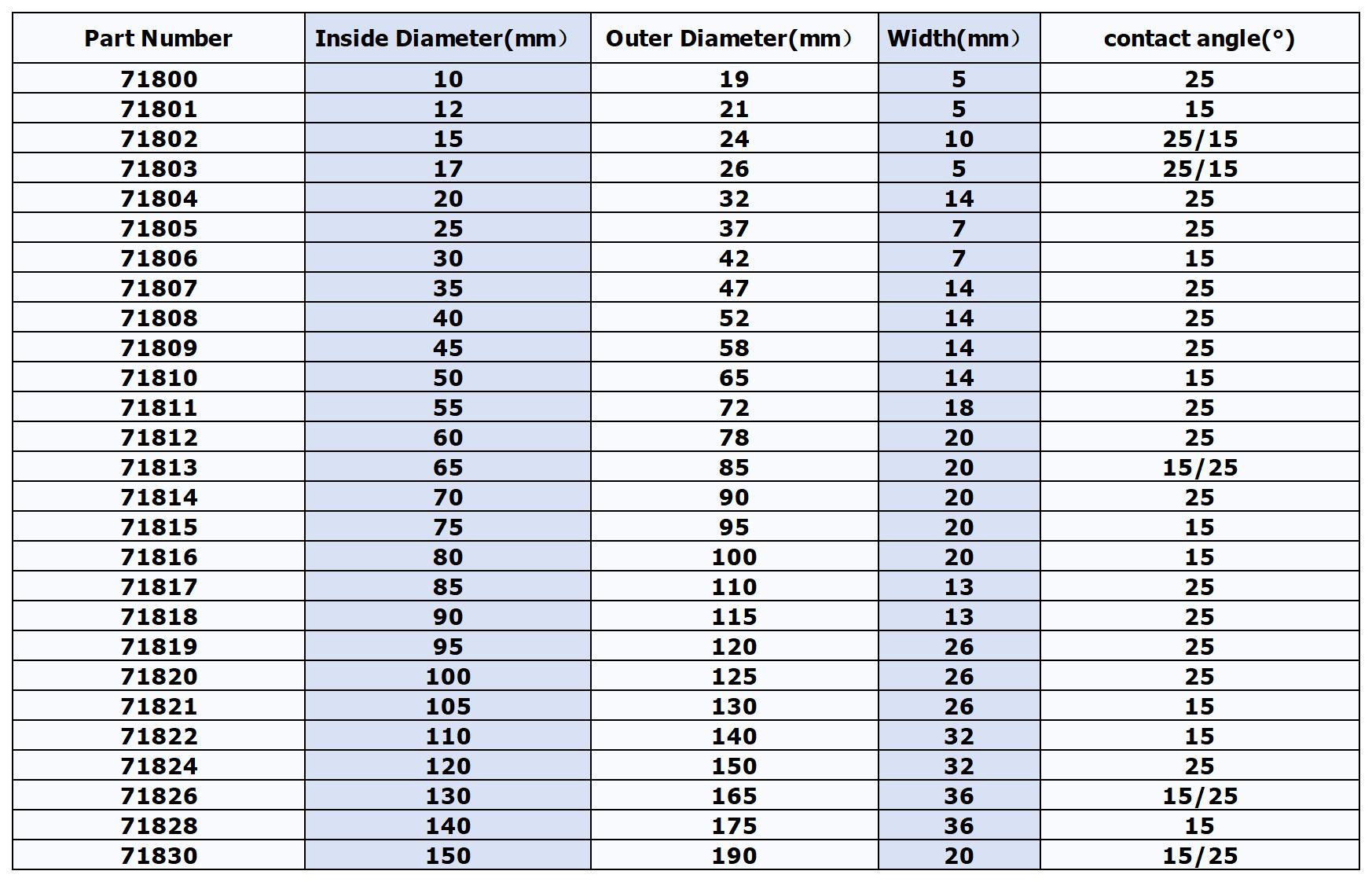

2.Technical parameters

3.Product Characteristics

Two paired super precision, high load carrying capacity, single row angular contact ball bearings in D-shape design

Two pairs of super precision, high load carrying capacity, D-design single row angular contact ball bearings are available in a variety of configurations. Designed for high load carrying capacity and high speeds, they are able to withstand higher loads than the same SKF B- and E-design high-speed bearings.

• High running accuracy; high load carrying capacity.
