Angular Contact Ball Bearing

• Products Introduction

The design of 7010 ACE/P4A Bearing is a culmination of advanced materials science, mechanical engineering, and precision manufacturing. 7010 ACE/P4A bore dia is 50 mm. Its out dia is 80 mm. 7010 ACE/P4A width is 16 mm. This super precision angular contact ball bearing is integral in high-speed spindles, precision instruments, and applications where accuracy and speed are critical.

•  Custom Detail

1.Custom Approach: OEM/ODM(non-standard)

2.MOQ: Simple Custom-500 pieces

              Non-standard Custom: Small Size-5000 pieces

                                             Medium Size-5000 pieces

                                             Big Size-5000 pieces

Please send us an email for specific customisation needs, we will answer your questions about the customisation process in detail

• Product Details

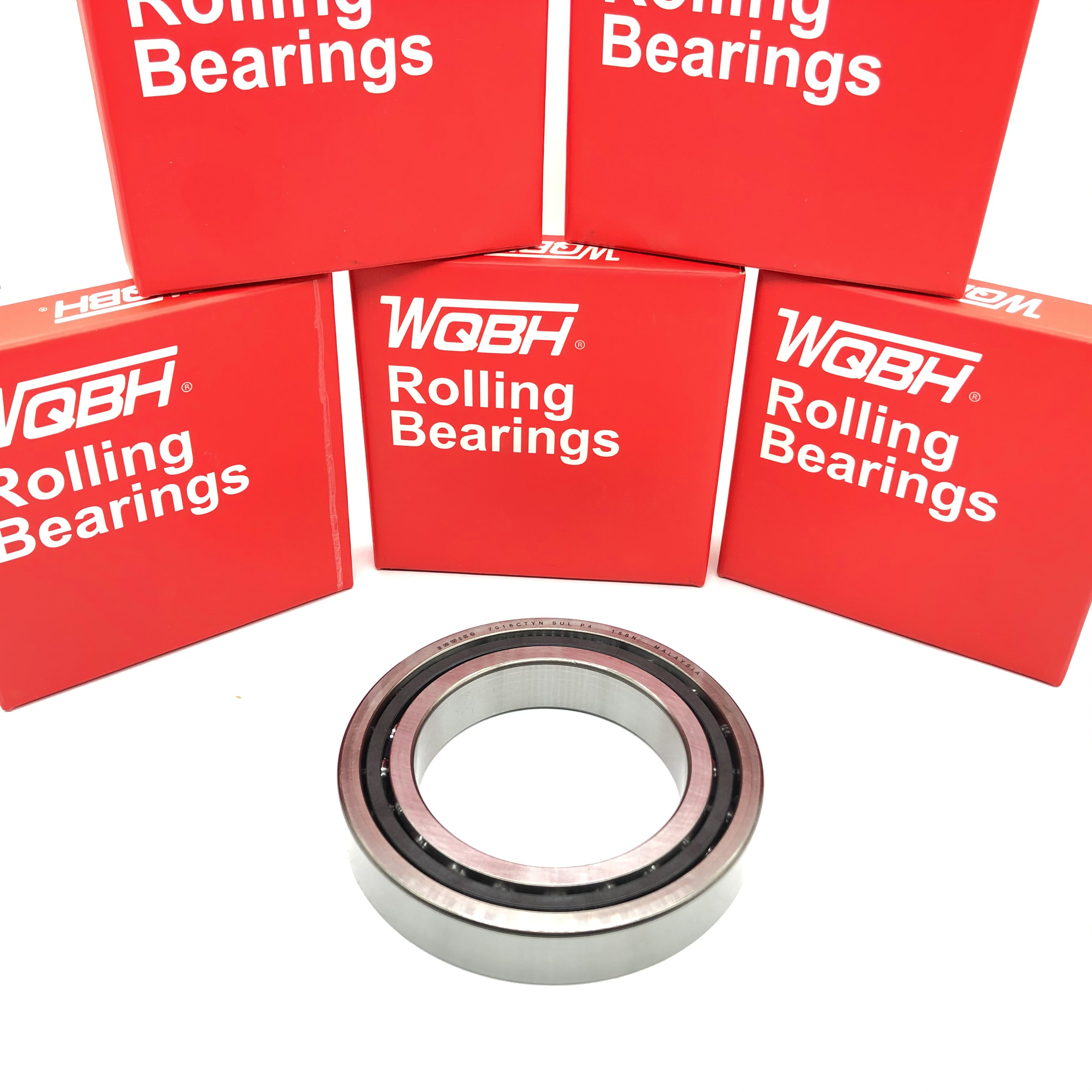

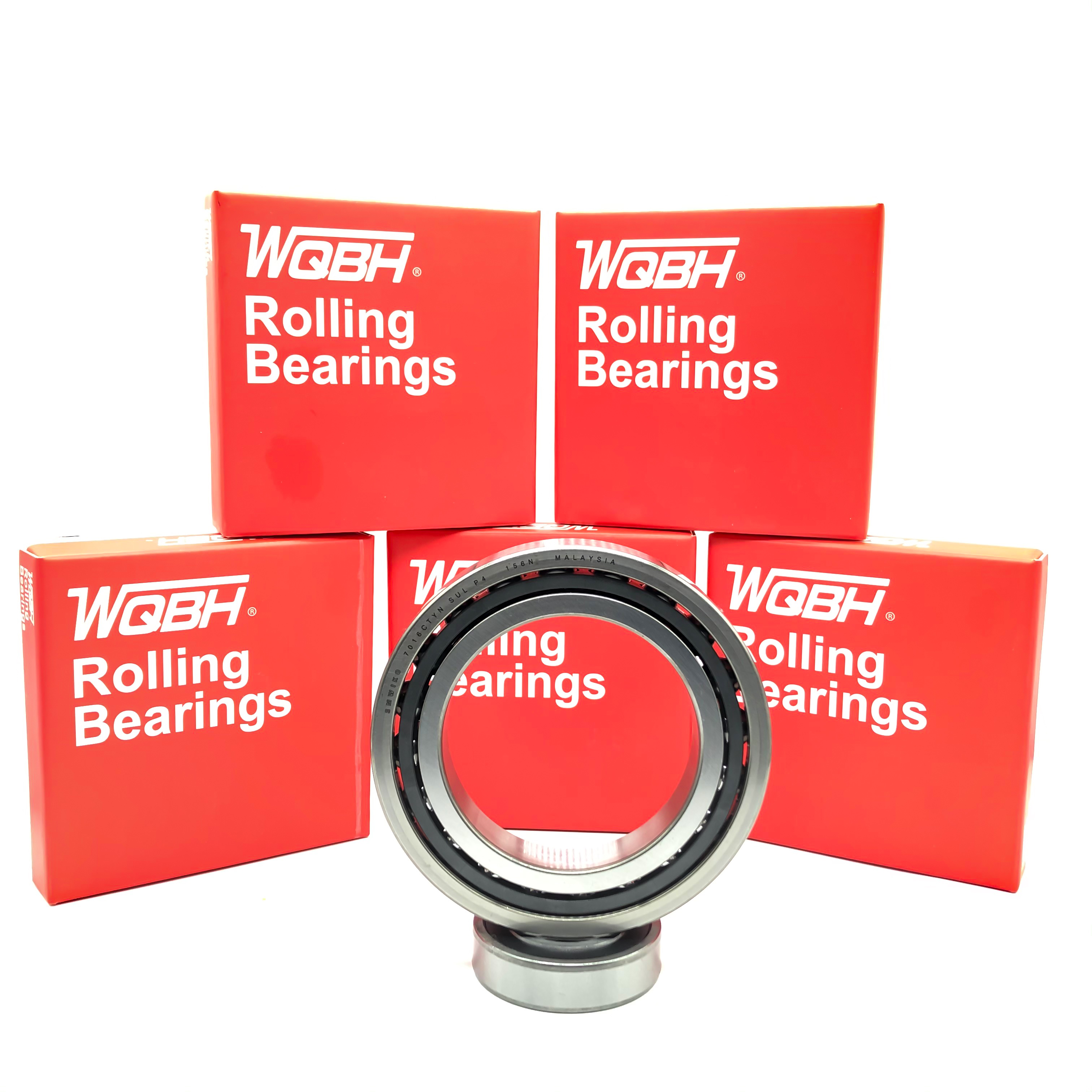

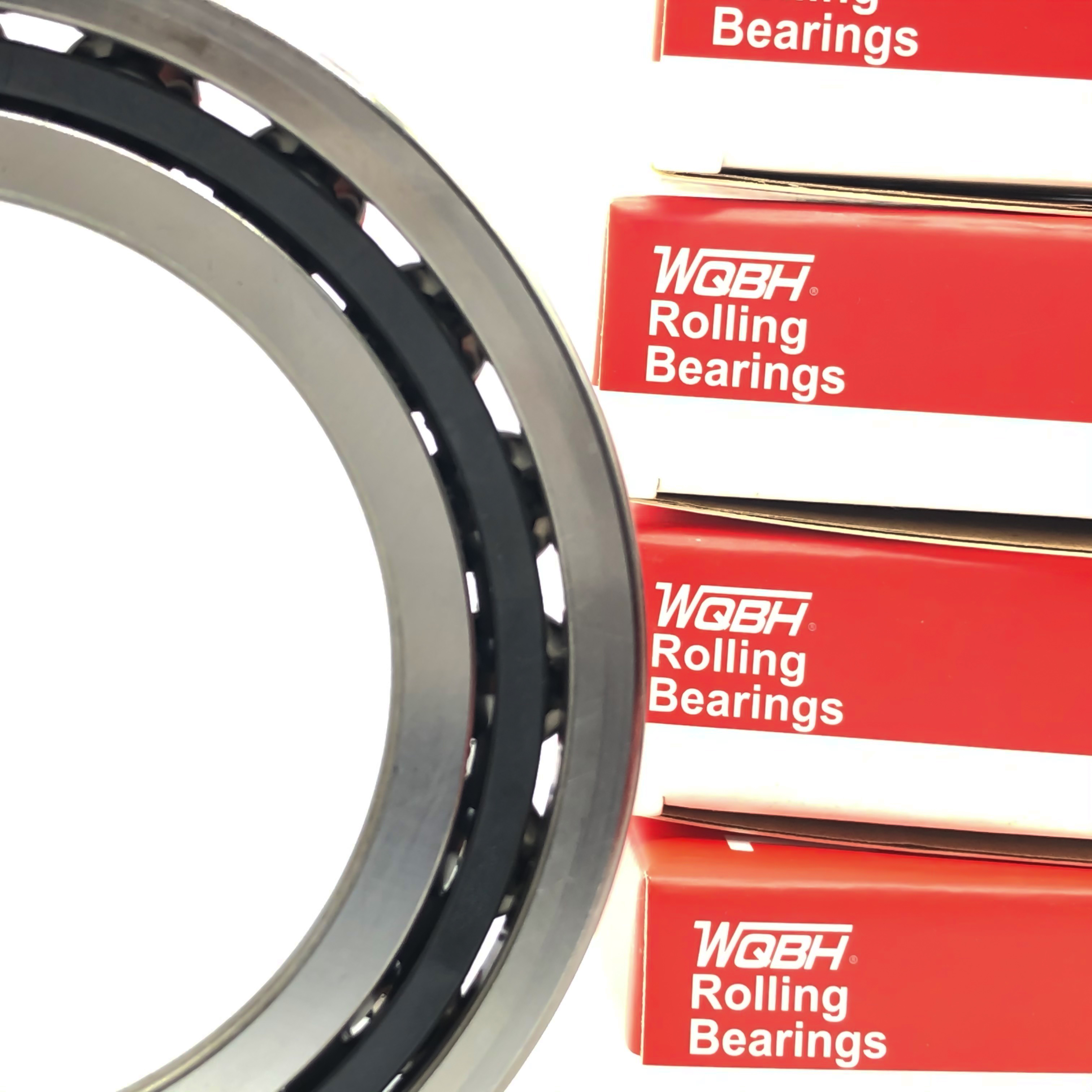

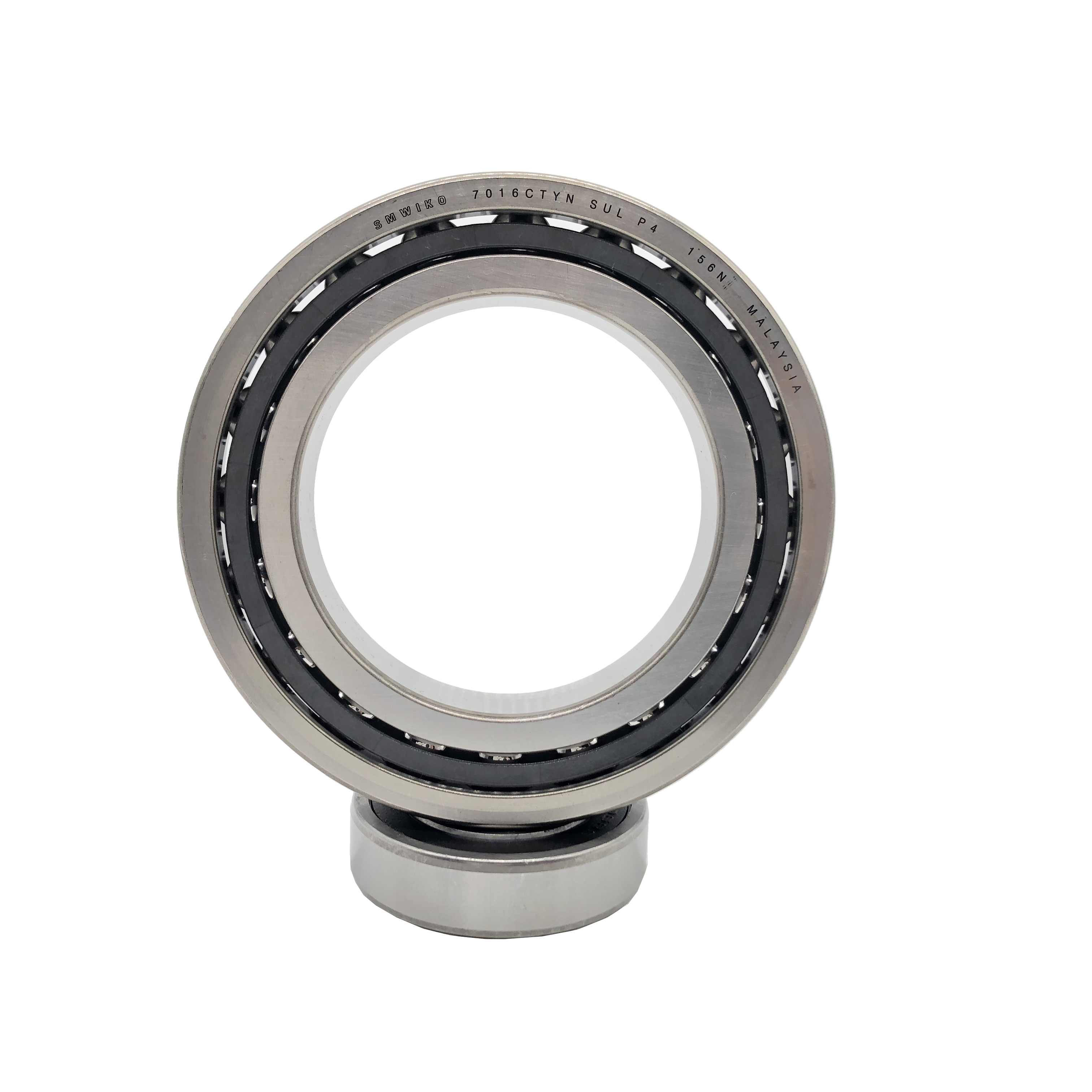

1.Detail Picture

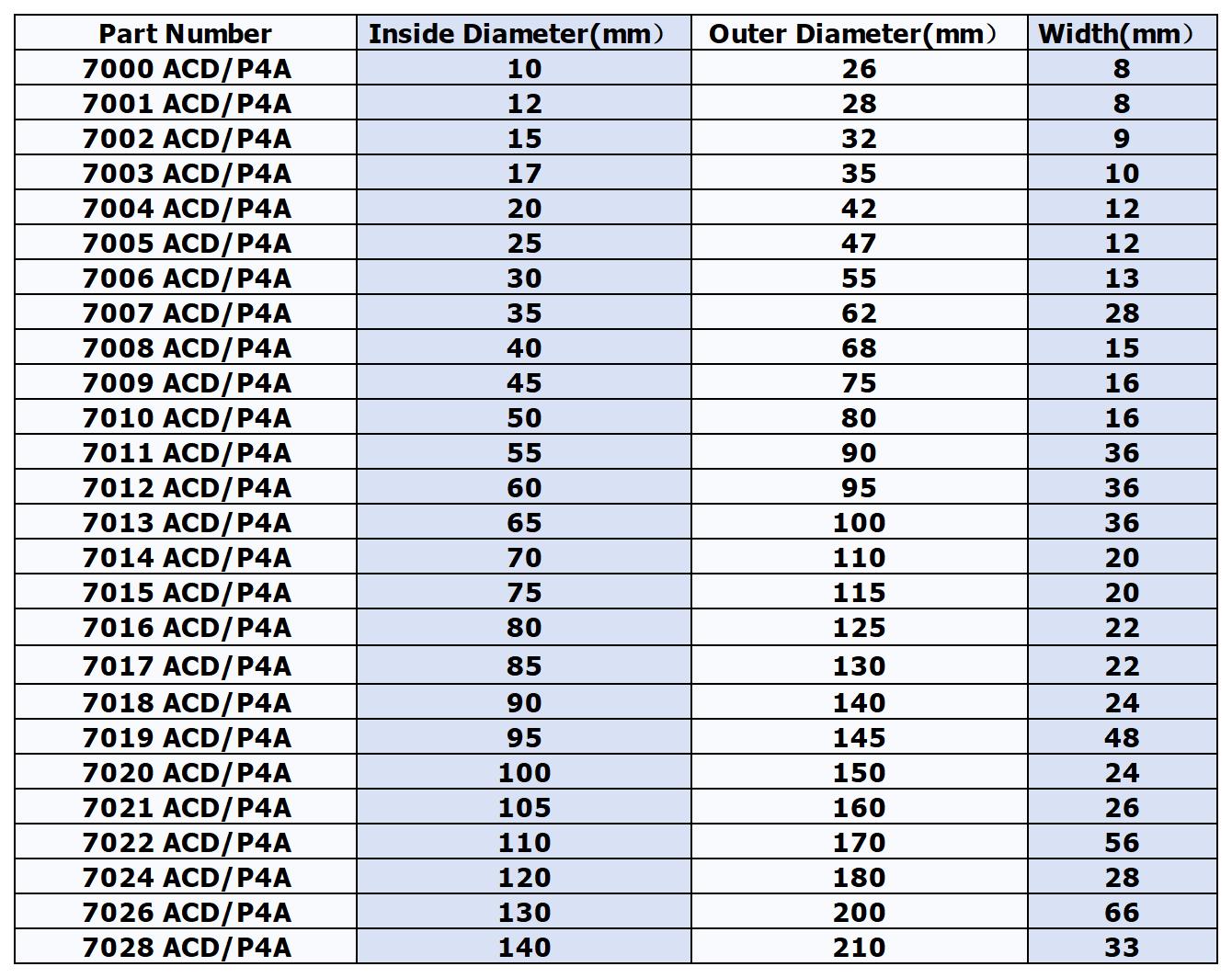

2.Technical parameters

3.Product Characteristics

These ultra-precision, high-load-capacity single-row angular contact ball bearings can withstand radial and axial loads acting simultaneously, while axial loads can only be applied in one direction. They are designed to withstand high loads at relatively high speeds at low to medium operating temperatures. Thanks to the universal matching pair, the bearings can be mounted at will, allowing an even distribution of load between the two bearings within a pre-set preload range without the use of shims or similar devices.

Ultra-high running accuracy; Ultra-high load carrying capacity; High speed and stiffness; Universal matching
